Attacking Kerberos

sub-pages contain Exploits ^^ .

What is kerberos ?

Kerberos is a protocol for authenticating service requests between trusted hosts across an untrusted network, such as the internet. Kerberos support is built in to all major computer operating systems, including Microsoft Windows, Apple macOS, FreeBSD and Linux.

What is Realm?

A Kerberos realm is the domain over which a Kerberos authentication server has the authority to authenticate a user, host or service. A realm name is often, but not always the upper case version of the name of the DNS domain over which it presides.

What is the difference between Kerberos and NTLM?

Before Kerberos, Microsoft used an authentication technology called NTLM. NTLM stands for NT Lan Manager and is a challenge-response authentication protocol. The target computer or domain controller challenge and check the password, and store password hashes for continued use.

The biggest difference between the two systems is the third-party verification and stronger encryption capability in Kerberos. This extra step in the process provides a significant additional layer of security over NTLM.

NTLM systems can get hacked in a matter of hours these days: it’s simply older technology, and you shouldn’t rely upon NTLM to protect sensitive data.

Kerberos vs LDAP

When reading about Kerberos, you’ll frequently see mentions of LDAP. Kerberos and LDAP are commonly joined together (including in Active Directory) to provide a centralized user directory (LDAP) and authentication (Kerberos) services.

LDAP, the Lightweight Directory Access Protocol, stores information about users, groups, and other objects (like computers) in a central location. It can also provide for simple authentication, however these native protocols, unlike Kerberos, generally require the user’s secret (i.e. password) to be transmitted over the network. Each resource the user wants to access must handle the user’s password and separately authenticate the user to the directory.

Unlike LDAP, Kerberos provides for single sign-on functionality. Once a user has authenticated to the KDC, no other service (like an intranet site or file share) needs the user’s password. The KDC – that trusted third-party – is responsible for issuing tickets that each service trusts. The combination of LDAP and Kerberos provides centralized user management and authentication, and in larger networks this provides substantial security benefits.

Transport layer

Kerberos uses either UDP or TCP as transport protocol, which sends data in cleartext. Due to this Kerberos is responsible for providing encryption.

Ports used by Kerberos are UDP/88 and TCP/88.

Kerberos items

1. Agents

these components work together to provide authentication in Kerberos

Client or user who wants to access to the service.
services or AP (Application Server) which offers the service required by the user.
KDC (Key Distribution Center), the main service of Kerberos, responsible of issuing the tickets, installed on the DC (Domain Controller). It is supported by the AS (Authentication Service), which issues the TGTs.

2. Encryption keys

There are several structures handled by Kerberos, as tickets. Many of those structures are encrypted or signed in order to prevent being tampered by third parties. These keys are the following:

KDC or krbtgt key which is derivate from krbtgt account NTLM hash.
User key which is derivate from user NTLM hash.
Service key which is derivate from the NTLM hash of service owner, which can be an user or computer account.
Session key which is negotiated between the user and KDC.
Service session key to be use between user and service.

3. Tickets

The main structures handled by Kerberos are the tickets. These tickets are delivered to the users in order to be used by them to perform several actions in the Kerberos realm. There are 2 types:

The TGS (Ticket Granting Service) is the ticket which user can use to authenticate against a service. It is encrypted with the service key.
The TGT (Ticket Granting Ticket) is the ticket presented to the KDC to request for TGSs. It is encrypted with the KDC key.

4. PAC

The PAC (Privilege Attribute Certificate) is an structure included in almost every ticket. This structure contains the privileges of the user and it is signed with the KDC key.

It is possible to services to verify the PAC by comunicating with the KDC, although this does not happens often. Nevertheless, the PAC verification consists of checking only its signature, without inspecting if privileges inside of PAC are correct.

Furthermore, a client can avoid the inclusion of the PAC inside the ticket by specifying it in KERB-PA-PAC-REQUEST field of ticket request.

5. Messages

Kerberos uses differents kinds of messages. The most interesting are the following:

KRB_AS_REQ: Used to request the TGT to KDC.
KRB_AS_REP: Used to deliver the TGT by KDC.
KRB_TGS_REQ: Used to request the TGS to KDC, using the TGT.
KRB_TGS_REP: Used to deliver the TGS by KDC.
KRB_AP_REQ: Used to authenticate a user against a service, using the TGS.
KRB_AP_REP: (Optional) Used by service to identify itself against the user.
KRB_ERROR: Message to comunicate error conditions.

Additionally, even if it is not part of Kerberos, but NRPC, the AP optionally could use the KERB_VERIFY_PAC_REQUEST message to send to KDC the signature of PAC, and verify if it is correct.

Authentication process

In this section, the sequency of messages to perform authentication will be studied, starting from a user without tickets, up to being authenticated against the desired service.

check this video:https://www.youtube.com/watch?v=5N242XcKAsM

1. KRB_AS_REQ: Request TGT from Authentication Service (AS)

Firstly, user must get a TGT from KDC. To achieve this, a KRB_AS_REQ must be sent:

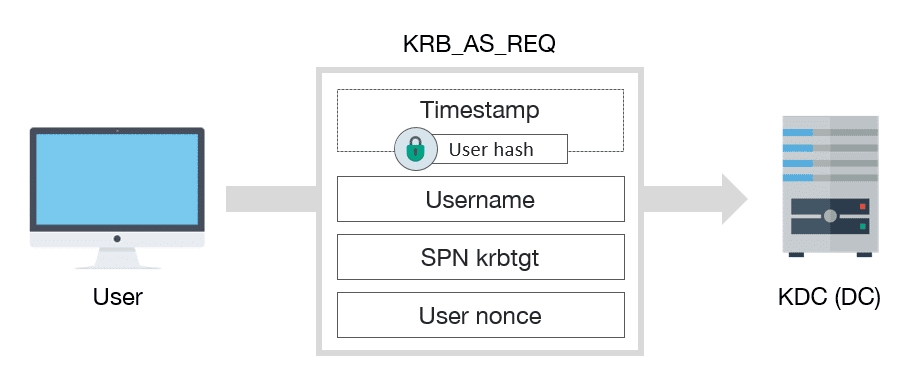

KRB_AS_REQ schema message

KRB_AS_REQ has, among others, the following fields:

A encrypted timestamp with client key, to authenticate user and prevent replay attacks
Username of authenticated user
The service SPN asociated with krbtgt account
A Nonce generated by the user

Note: the encrypted timestamp is only necessary if user requires preauthentication, which is common, except if DONT_REQ_PREAUTH flag is set in user account.

2. KRB_AS_REP: TGT Received from Authentication Service

After receiving the request, the KDC verifies the user identity by decrypting the timestamp. If the message is correct, then it must respond with a KRB_AS_REP:

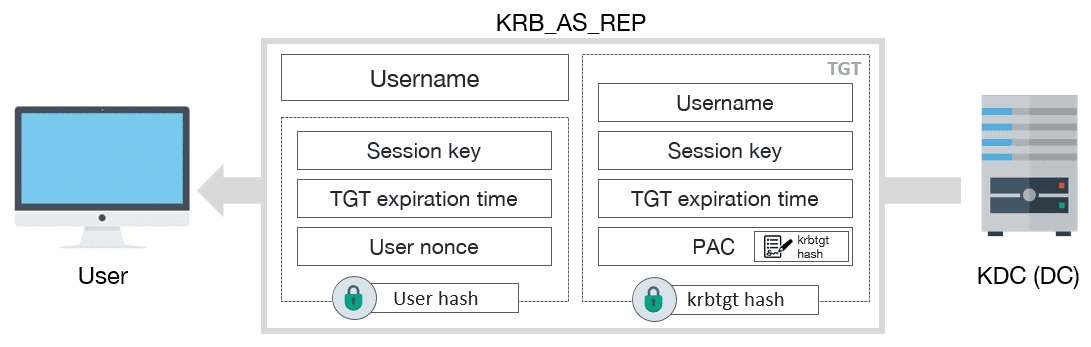

KRB_AS_REP schema message

KRB_AS_REP includes the next information:

Username
TGT, which includes:
- Username
- Session key
- Expiration date of TGT
- PAC with user privileges, signed by KDC
Some encrypted data with user key, which includes:
- Session key
- Expiration date of TGT
- User nonce, to prevent replay attacks

Once finished, user already has the TGT, which can be used to request TGSs, and afterwards access to the services.

3. KRB_TGS_REQ: Present TGT and TGS request

In order to request a TGS, a KRB_TGS_REQ message must be sent to KDC:

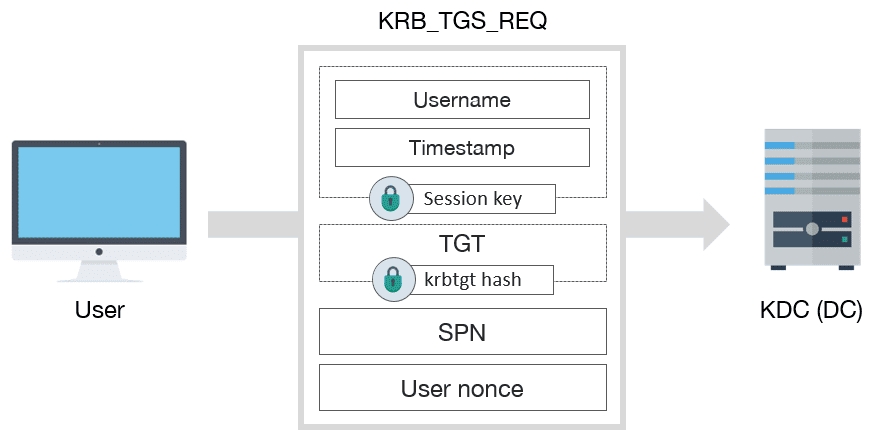

KRB_TGS_REQ schema message

KRB_TGS_REQ includes:

Encrypted data with session key:
- Username
- Timestamp
TGT
SPN of requested service
Nonce generated by user

4. KRB_TGS_REP: Receive TGS from KDC

After receiving the KRB_TGS_REQ message, the KDC returns a TGS inside of KRB_TGS_REP:

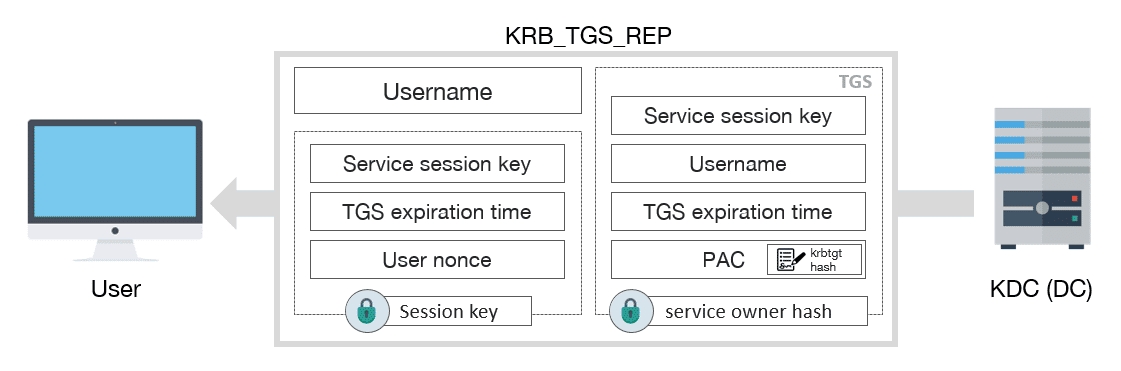

KRB_TGS_REP schema message

KRB_TGS_REP includes:

Username
TGS, which contains:
- Service session key
- Username
- Expiration date of TGS
- PAC with user privileges, signed by KDC
Encrypted data with session key:
- Service session key
- Expiration date of TGS
- User nonce, to prevent replay attacks

5. KRB_AP_REQ: Present TGS to Application Server for Authorization

To finish, if everything went well, the user already has a valid TGS to interact with service. In order to use it, user must send to the AP a KRB_AP_REQ message:

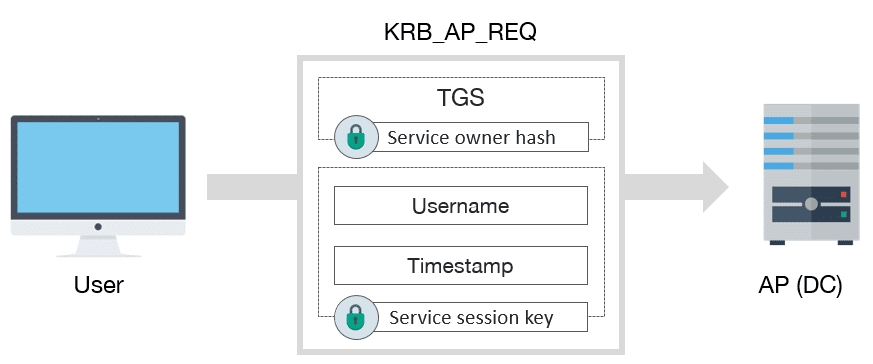

KRB_AP_REQ schema message

KRB_AP_REQ includes:

TGS
Encrypted data with service session key:
- Username
- Timestamp, to avoid replay attacks

6. KRB_AP_REP: Grant Client Access to the Service

After that, if user privileges are rigth, this can access to service. If is the case, which not usually happens, the AP will verify the PAC against the KDC. And also, if mutual authentication is needed it will respond to user with a KRB_AP_REP message.

The client receives the message and decrypts it with the service session key.
The Application Server extracts the Privilege Attribute Certificate (PAC) from the service ticket to verify its contents with a domain controller.
Validation of the ticket/PAC only happens when the Ticket Granting Ticket (TGT) is older than 20 minutes.

Important Factors

There are a handful of factors that influence how Kerberos operates, and can be sources of problems if not sufficiently provided for.

Replication between domain controllers If multiple domain controllers (i.e. multiple KDCs) are deployed, then replication must be enabled and converge in a timely manner. Should replication fail or convergence be delayed, authentication failures are possible when a user changes their password.
Clients and KDCs must use NETBIOS and DNS name resolution Kerberos Service Principal Names normally include NETBIOS and DNS addresses, which means both the KDC and Client must be able to resolve those names the same way. In [certain situations](https://docs.microsoft.com/en-us/windows-server/security/kerberos/configuring-kerberos-over-ip#:~:text=by IP address.-,Configuring a Service Principal Name as IP Address,%2Ffs.contoso.com .), IP addresses may also be used in Service Principal Names.
Clients and KDCs must have their clocks synchronized Accurate measurement of time is important in Kerberos to prevent replay attacks. Kerberos supports a configurable time skew (default 5 minutes) outside of which authentication will fail.
Clients and KDCs must be able to communicate on the network Kerberos traffic occurs on TCP and UDP port 88, which must be accessible from all clients to at least one KDC (domain controller).
Clients, Users, and Services must have unique names Duplicate names for computers, users, or Service Principal Names can cause Kerberos unexpected Kerberos authentication failures.
